Manage storage and tiering

Configure high-performance and low-cost object storage tiers in Tiger Console

Tiering splits hot data on fast local volumes from cold data in cheaper object storage. Tiger Cloud implements that as a high-performance tier plus a low-cost object storage tier:

You use high-performance storage to store and query frequently accessed data.
You use low-cost object storage to cut costs by migrating rarely used data from the high-performance storage. After you enable tiered storage, you then either create automated tiering policies or manually tier and untier data.

You can query the data on the object storage tier, but you cannot modify it. Make sure that you are not tiering data that needs to be actively modified.

For low-cost storage, Tiger Data charges for data tiered based on its original uncompressed size in the high-performance storage tier. There are no additional expenses, such as data transfer or compute.

High-performance storage tier

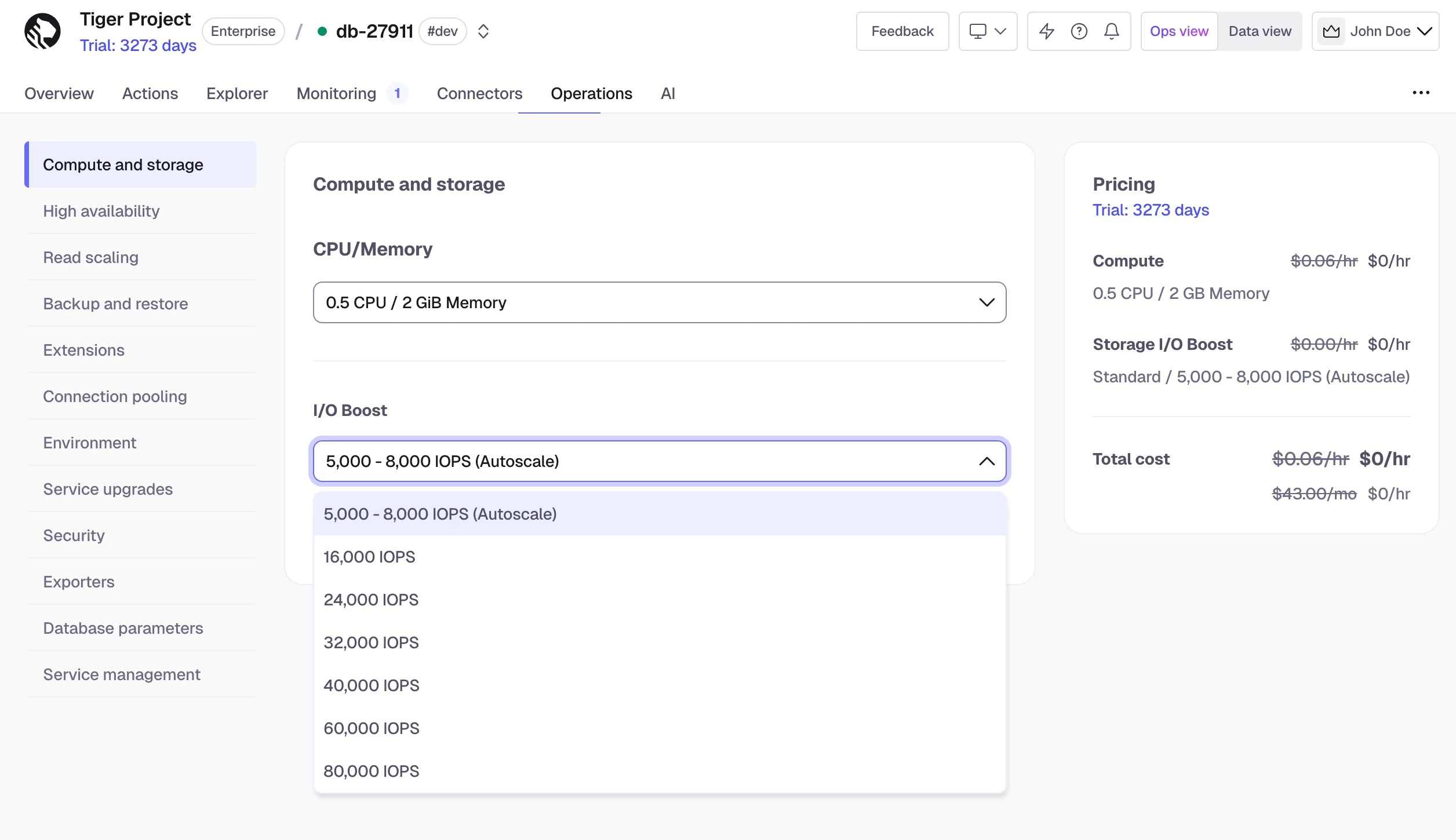

By default, Tiger Cloud stores your service data in the standard high-performance storage. This gives you up to 64 TB of storage and a configurable IOPS value to better suit your needs:

Select your service
In Tiger Console, select your service, then click Operations > Compute and storage.

Select the IOPS value

Select the IOPS value in the I/O boost dropdown:

Under the Performance pricing plan, IOPS is set to 3,000 - 5,000 autoscale and cannot be changed.
Under the Scale pricing plan, IOPS is set to 5,000 - 8,000 autoscale and can be upgraded to 40,000 IOPS subject to your service’s CPU configuration.
Under the Enterprise pricing plan, IOPS is set to 5,000 - 8,000 autoscale and can be upgraded to 80,000 IOPS subject to your service’s CPU configuration.

The available IOPS and the corresponding throughput depend on your service’s CPU, cloud provider, and the pricing plan:

Tiger Cloud on AWS

Pricing plan	Min CPU	IOPS	Throughput, MB/s
Scale/Enterprise	Under 16	16,000	1,000
Scale/Enterprise	16	24,000	1,000
Scale/Enterprise	32	32,000	1,500
Scale/Enterprise	32	40,000	1,500
Enterprise	48	60,000	1,875
Enterprise	64	80,000	2,000

Tiger Cloud on Azure

Pricing plan	Min CPU	IOPS	Throughput, MB/s
Scale/Enterprise	n/a	16,000	1,000
Scale/Enterprise	16	24,000	1,000
Scale/Enterprise	32	32,000	1,200
Scale/Enterprise	32	40,000	1,200
Enterprise	48	60,000	1,200
Enterprise	64	80,000	1,200

Click Apply

Low-cost object storage tier

Low-cost tiered storage is available on Scale and Enterprise pricing plans.

You enable the low-cost object storage tier in Tiger Console and then tier the data with policies or manually.

Enable tiered storage

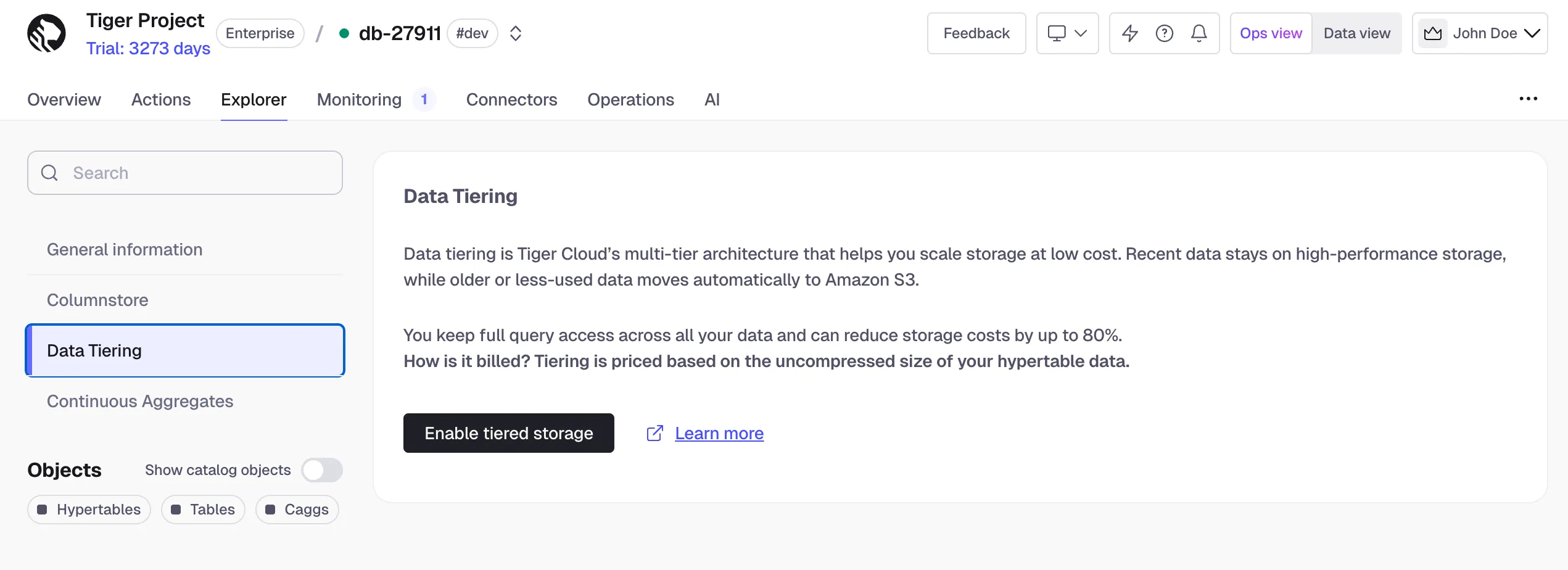

You enable tiered storage from the Overview tab in Tiger Console.

Select your service
In Tiger Console, select the service to modify.
Enable tiered storage
In Explorer, click Data Tiering > then click Enable tiered storage.
Once enabled, you can proceed to tier data manually or set up tiering policies. When tiered storage is enabled, you see the amount of data in the tiered object storage.

Automate tiering with policies

A tiering policy automatically moves any chunks that only contain data older than the move_after threshold to the object storage tier. This works similarly to a data retention policy, but chunks are moved rather than deleted.

A tiering policy schedules a job that runs periodically to asynchronously migrate eligible chunks to object storage. Chunks are considered tiered once they appear in the timescaledb_osm.tiered_chunks view.

You can add tiering policies to hypertables, including continuous aggregates, via Console UI or an SQL editor.

Add a tiering policy

To add a tiering policy, connect to your service and call add_tiering_policy:

SELECT add_tiering_policy(hypertable REGCLASS, move_after INTERVAL, if_not_exists BOOL = false);

For example, to tier chunks that are more than three days old in the example hypertable:

SELECT add_tiering_policy('example', INTERVAL '3 days');

By default, a tiering policy runs hourly on your database. To change this interval, call alter_job.

Remove a tiering policy

To remove an existing tiering policy, call remove_tiering_policy:

SELECT remove_tiering_policy(hypertable REGCLASS, if_exists BOOL = false);

For example, to remove the tiering policy from the example hypertable:

SELECT remove_tiering_policy('example');

If you remove a tiering policy, the remaining scheduled chunks are not tiered. However, chunks in tiered storage are not untiered. You untier chunks manually to local storage.

Manually tier and untier chunks

If tiering policies do not meet your current needs, you can tier and untier chunks manually. To do so, connect to your service and run the queries below in the data mode, the SQL editor, or using psql.

Tier chunks

Tiering a chunk is an asynchronous process that schedules the chunk to be tiered. In the following example, you tier chunks older than three days in the example hypertable. You then list the tiered chunks.

Select old chunks

Select all chunks in example that are older than three days:

SELECT show_chunks('example', older_than => INTERVAL '3 days');

This returns a list of chunks:

_timescaledb_internal._hyper_1_1_chunk
_timescaledb_internal._hyper_1_2_chunk

Tier each chunk
SELECT tier_chunk('_timescaledb_internal._hyper_1_1_chunk');
Repeat for all chunks you want to tier. Tiering a chunk schedules it for migration to the object storage tier, but the migration won’t happen immediately. Chunks are tiered one at a time to minimize database resource consumption. A chunk is marked as migrated and deleted from the standard storage only after it has been durably stored in the object storage tier. You can continue to query a chunk during migration.

View tiered chunks

SELECT * FROM timescaledb_osm.tiered_chunks;

To see which chunks are scheduled for tiering either by policy or by a manual call, but have not yet been tiered:

SELECT * FROM timescaledb_osm.chunks_queued_for_tiering;

Untier chunks

To update data in a tiered chunk, move it back to the standard high-performance storage tier in Tiger Cloud. Untiering chunks is a synchronous process. Chunks are renamed when the data is untiered.

Check which chunks are tiered

SELECT * FROM timescaledb_osm.tiered_chunks;

Sample output:

 hypertable_schema | hypertable_name |    chunk_name    |      range_start       |       range_end
-------------------+-----------------+------------------+------------------------+------------------------
public            | sample          | _hyper_1_1_chunk | 2023-02-16 00:00:00+00 | 2023-02-23 00:00:00+00
(1 row)

Call untier_chunk
CALL untier_chunk('_hyper_1_1_chunk');

Verify the chunk details

SELECT * FROM timescaledb_information.chunks;

Sample output:

-[ RECORD 1 ]----------+-------------------------
hypertable_schema      | public
hypertable_name        | sample
chunk_schema           | _timescaledb_internal
chunk_name             | _hyper_1_4_chunk
primary_dimension      | ts
primary_dimension_type | timestamp with time zone
range_start            | 2023-02-16 00:00:00+00
range_end              | 2020-03-23 00:00:00+00
range_start_integer    |
range_end_integer      |
is_compressed          | f
chunk_tablespace       |
data_nodes             |

Drop tiered data

To drop tiered data, call DROP TABLE on the corresponding hypertable. This removes the hypertable and all its associated data from the high-performance and low-cost storage.

Disable tiering

Contact Tiger Data support if you are disabling tiering when moving from Scale to Performance pricing plan.

If you no longer want to use tiered storage for a particular hypertable, drop the associated metadata by calling disable_tiering.

Remove tiering policies
Drop all tiering policies by calling remove_tiering_policy.
Check for tiered data
Make sure that there is no tiered data associated with this hypertable:
1. List the tiered chunks:
  SELECT * FROM timescaledb_osm.tiered_chunks;
2. If you have any tiered chunks, either untier this data, or drop these chunks from tiered storage.

Disable tiering

SELECT disable_tiering('my_hypertable_name');

Verify tiering is disabled

SELECT * FROM timescaledb_osm.tiered_hypertables;
